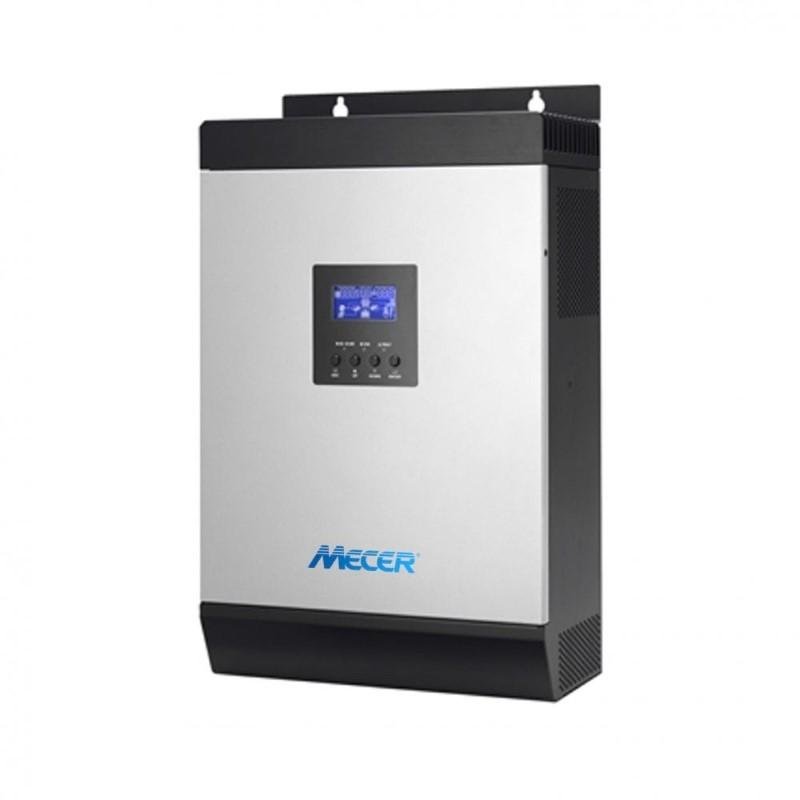

Mecer Axpert VM II 3K-24 3,000VA/3000W Hybrid Inverter Charger(SOL-I-AXVM2-3K24)

Model:SOL-I-AXVM2-3K24

Rated Power 3000VA / 3000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode): 230VAC ± 5%
Surge Power: 6000VA
Efficiency :(Peak) 90% ~ 93%
Transfer Time: 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform: Pure sine wave
BATTERY
Battery Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 33 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 500 VDC
Maximum PV Array Power 4000 W
MPP Range @ Operating Voltage 120~450 VDC
Maximum Solar Charge Current 80 A
Maximum AC Charge Current 60 A
Maximum Charge Current 80 A
PHYSICAL
Dimension, D x W x H (mm) 100 x 300 x 440
Net Weight (kgs) 9
Communication Interface USB/RS232
ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
